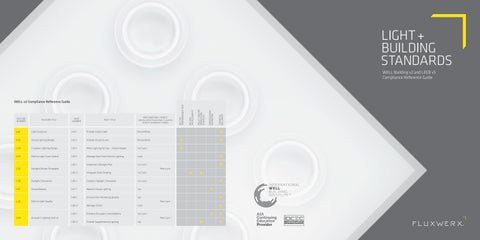

LIGHT + BUILDING STANDARDS
Compliance Reference Guide
Use this reference guide to assist in selecting luminaires that comply with WELL feature L04 requirements and LEED Internal Environmental Quality standards. The listed values represent the maximum energy package at 4000 K that meet these requirements. Any energy option below the listed value also complies.
Requirements for WELL v2 and LEED v5: Luminance < 6,000 cd/m2 @ 45-90° OR UGR ≤ 19 OR 100% UP Distribution
RECESSED
INBOX 2-SIDE
NB2-14 1×4 C - 34 W 5,460 -
NB2-22 2×2 C - 34 W 4,460 -
NB2-24 2×4 D - 43 W 3,060 -
INBOX 4-SIDE NB1-22 2×2 C - 34 W 5,090INBOX MINI NX2-14 1×4 A - 23 W 5,100NX2-24 2×4 B - 29 W 4,840LOOP RECESSED
LR1-14 1×4 C - 29 W 5,010LR1-22 2×2 C - 29 W 5,520LR1-24 2×4 D - 38 W 3,660 -
RA1-14 1×4 C - 36 W 5,700 -
2×2 C - 36 W 5,490 -
2×4 D - 46 W 3,540 -
2×2 D - 43 W 5,770 -
2×4 D - 43 W 2,780 -
PORTAL
5.5"
FD1-F 65 UP 35 DN D - 38 W 2,620 13.8
LS1-A 65 UP 35 DN D - 38 W 4,530 16.5
LS1-D 20 UP 80 DN B - 23 W 5,730 -
FD3-B INDEPENDENT 55 UP 45 DN D - 38 W 3,630 16.2 LOOP SUSPENDED
LS1-E 55 UP 45 DN D - 38 W 5,260 17.3
LS3-B INDEPENDENT 55 UP 45 DN D - 38 W 5,260 17.3
PF1-A 40 UP 60 DN B - 23 W
PROFILE
SPEAK DOWNLIGHT
SPEAK MULTIPLE
TC1-R05
TC1-R09
TC1-S05
TC1-S09
SK1RS3
9" WIDE 20 UP 80 DN E 28 W - 12.6
9" WIDE 50 UP 50 DN E 28 W - ≤ 10
TC1-P09 9" WIDE 100 DN E 28 W - 16.8
9" MEDIUM 100 DN E 28 W 5,980 14.6
9" MEDIUM 20 UP 80 DN E 28 W 3,290 ≤ 10
9" MEDIUM 50 UP 50 DN E 28 W 2,150 ≤ 10
5.5" WIDE 100 DN D - 21 W - 18.8
5.5" MEDIUM 100 DN D - 21 W - 16.9
5.5" NARROW 100 DN D - 21 W - 15.2
9" WIDE 100 DN E 28 W - 16.8
9" MEDIUM 100 DN E 28 W 5,980 14.6
5.5" WIDE 100 DN D - 21 W - 18.8
5.5" MEDIUM 100 DN D - 21 W - 16.9
5.5" NARROW 100 DN D - 21 W - 15.2
9" WIDE 100 DN E 28 W - 16.8
9" MEDIUM 100 DN E 28 W 5,980 14.6
SINGLE 3" WIDE D - 16 W - 14.3
SINGLE 3" MEDIUM D - 16 W - ≤ 10
SINGLE 3" NARROW D - 16 W - 15.2
SINGLE 4" WIDE F 24 W - 18.9
SK1RS4
SINGLE 4" MEDIUM F 24 W - ≤ 10
SINGLE 4" NARROW F 24 W - ≤ 10
SK1M3-R
SK1M3-J
SK1M4-R
FIXED 3" WIDE D - 18 W - 14.5 FIXED 3" MEDIUM D - 18 W - ≤ 10
FIXED 3" NARROW D - 18 W - 15.4
ADJUSTABLE 3" MEDIUM C - 14 W - 18.0
ADJUSTABLE 3" NARROW C - 14 W - 15.4
FIXED 4" WIDE E 22 W - 18.6
FIXED 4" MEDIUM E 22 W - 5.1
FIXED 4" NARROW E 22 W - ≤ 10
SK1M4-J ADJUSTABLE 4" MEDIUM D - 18 W - 18.1
4" NARROW D - 18 W - 12.6
