LINO
Premierfloor
Commercial | Hospitality | Residential
Nylon Carpet Tile
Technical Specifications
Collection Name Lino
Yarn
100% Nylon 6
Construction Tufted Multi-level Loop
Dye Method Solution Dyed
Gauge 1/10 inch
Stitches Per Inch 12 per inch
Pile Height 3.5 mm (+/-0.5 mm)
Total Height 5.5 mm (+/-0.5 mm)
Pile Weight 16 oz/sy (544 gm/sm)
Total Weight 141 oz/sy (4800 +/-200 gm/sm)
Primary Backing Non-woven
Secondary Backing Polyolefin Bac
Size 25 x 100 cm/tile
Packing 20 pcs(5 sm/box)
Anti-Microbial Ultra-Fresh (avaliable as option)
Performance Specifications
Colorfastness Grade 5 = No Change (AATCC 16)
Flammability Class I (ASTM E648)
Smoke Density Passed (ASTM E662)
Static Propensity ≤3.5 kV (AATCC-134)
SGBC Leader ✓✓✓✓
Warranty 10 years
Installation Method
LIN01 Silver LIN03 Grey
LIN04 Dark Grey
LIN05 Carbon LIN06 Beige
Herringbone Brick Ashlar

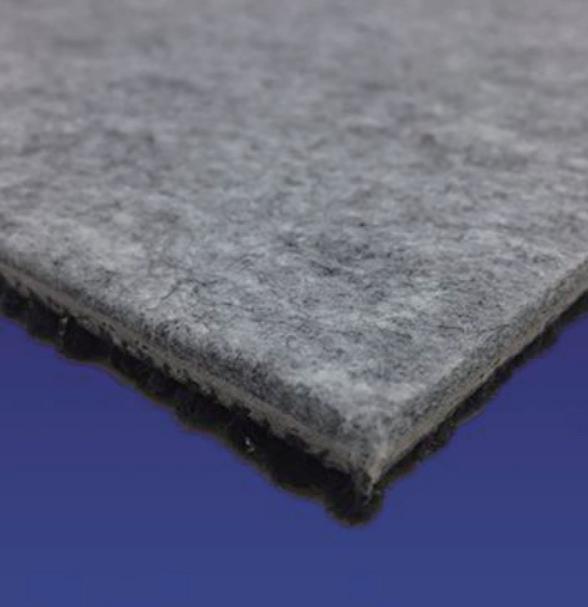

Polyolefin Bac
Carpet Tile Backing
Polyolefin Bac takes your spaces to a higher standard of sustainability to support greater wellness for people and planet. The Polyolefin Bac carpet tile contains recycled content, helping to eliminate the plastic waste stream. It offers superior performance and sustainability to the carpets.
Advantages
• Comfortable Underfoot Cushion backing tile helps reduce fatigue
• Noise Reduction Absorbs sound for better acoustics
• Dimensional Stability Maintains shape and appearance
• Hydrophobic Cushion Backing Repels moisture, prevents damage
• Eco-friendly Materials No plasticizers, PVC, or bitumen
• Sustainable Backing Made from 100% recycled PET bottles
• Green Building Support Contributes to LEED®, WELL & more
• Certified Performance CRI Green Label Plus & low carbon
• Lightweight & Efficient Easier shipping, lower freight cost.
Primary Backing
Pre-Coat Layer
Thermoplastic Compound
Thermoplastic Compound
Cushion (100% recycled from PET bottles) Fiberglasss
Note:
• Product specifications are based on standard manufacturing tolerances. Slight variations may occur but will not impact performance.
As with all quality carpets, minor color differences may appear between dye lots.
To maintain appearance and minimize wear, the use of protective chair pads is recommended under office chairs with castor wheels.
PET Beverage Bottles

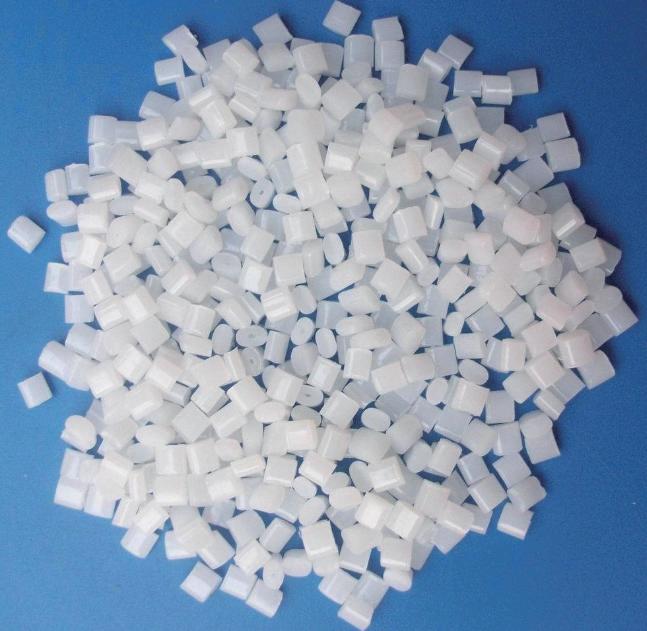

Cushion Layer Cushion Backing Regenerated into PET fiber Recycled into PET Chips
Yarn
Size 25 x 100 cm

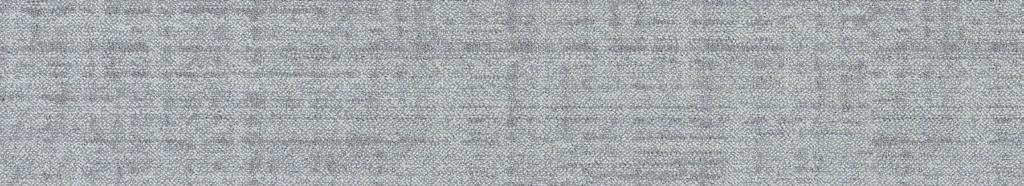

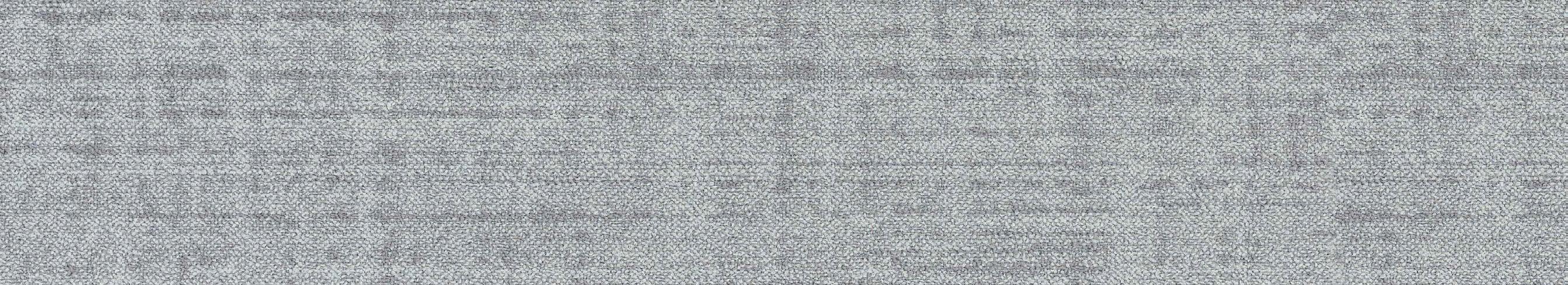

LIN01 Silver

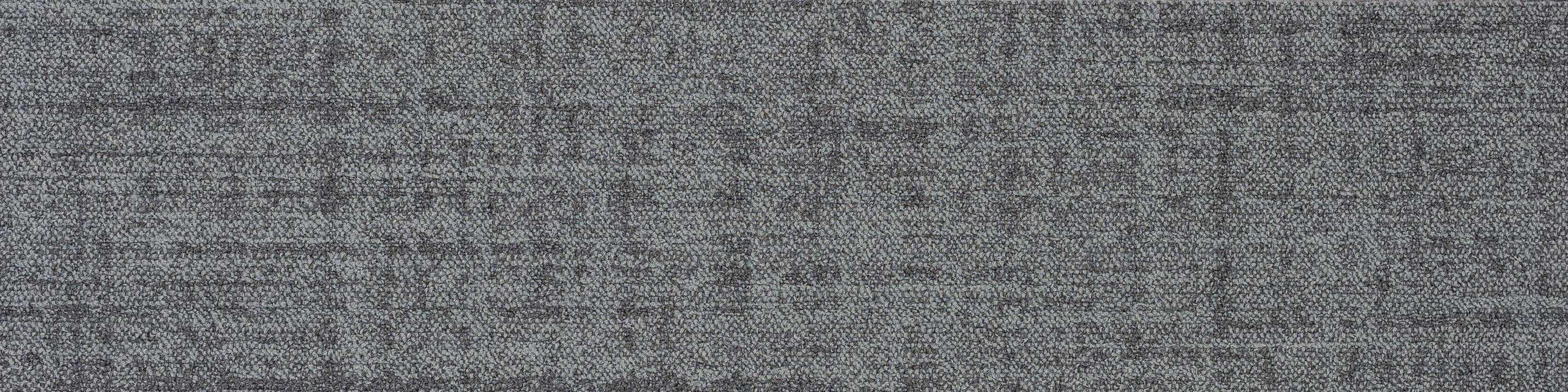

LIN03 Grey
LIN05 Carbon

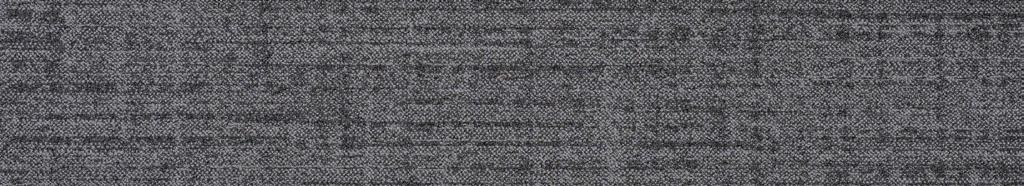

LIN04 Dark Grey

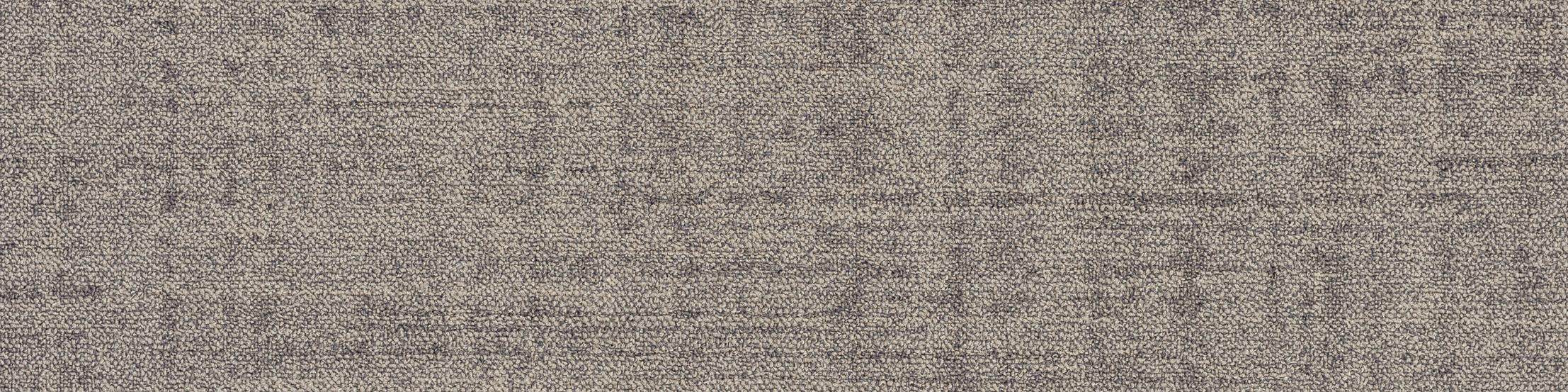

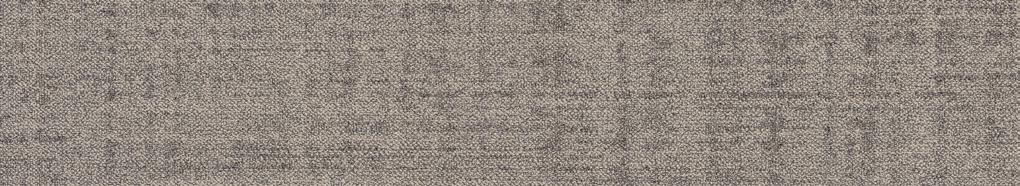

LIN06 Beige

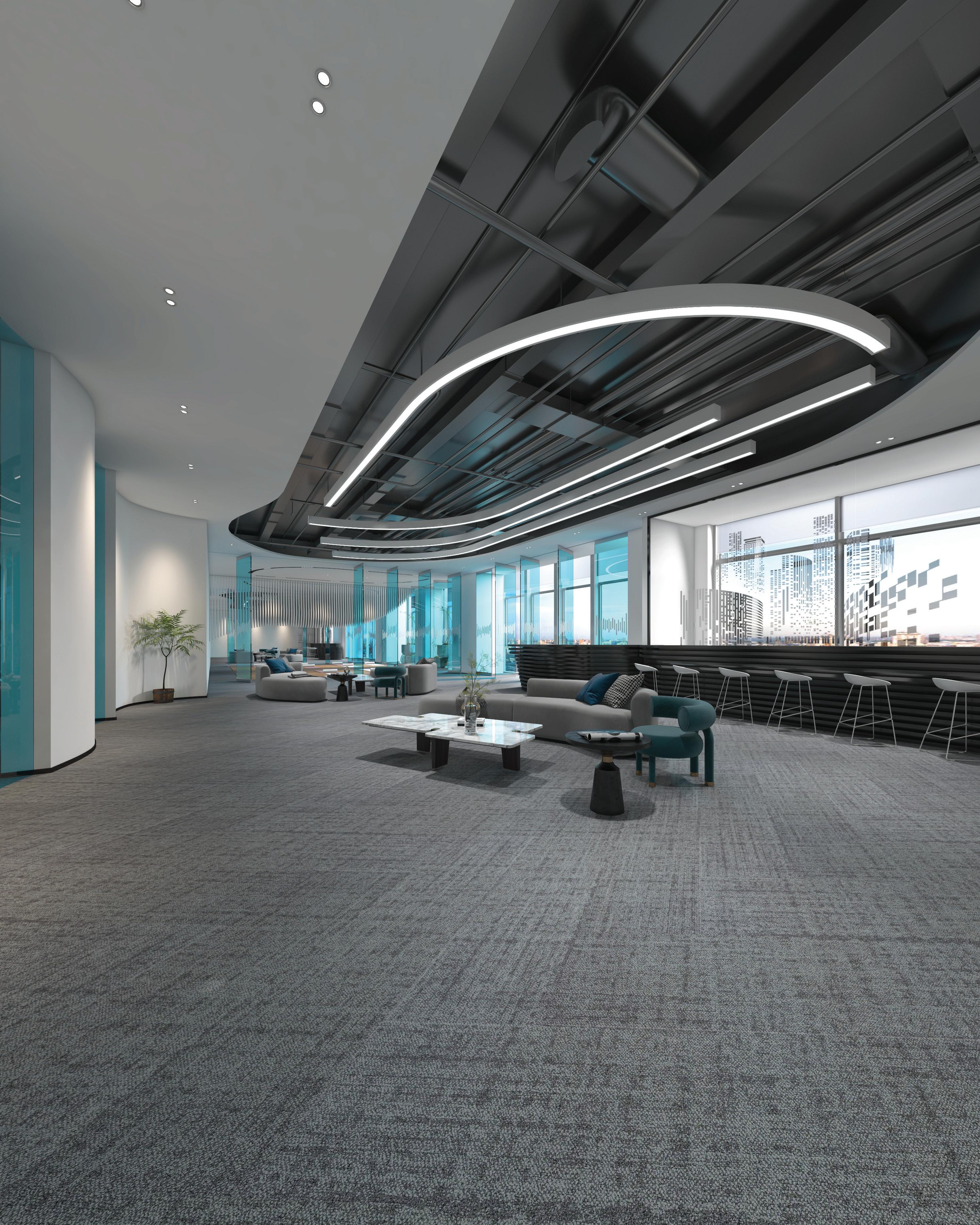

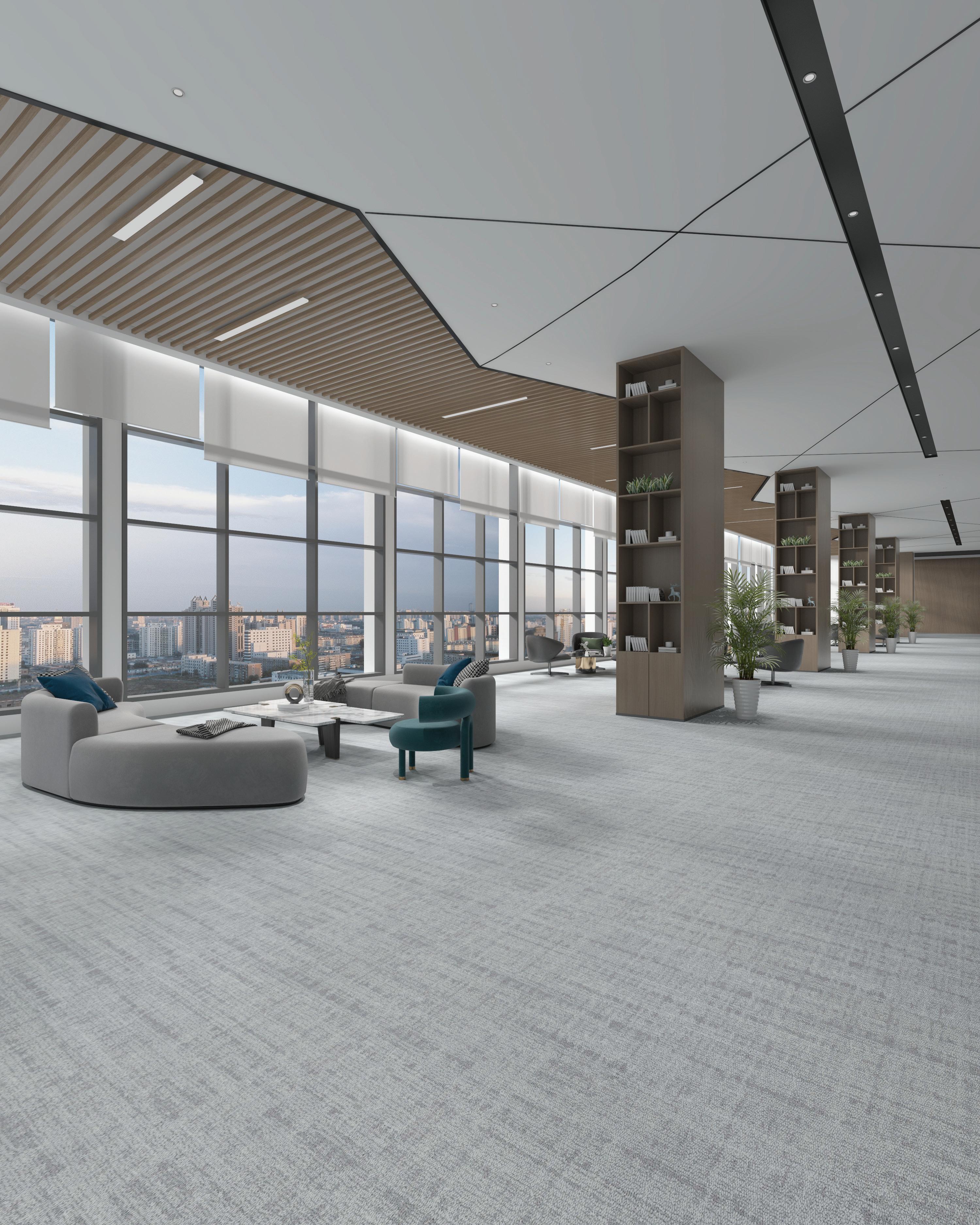

LIN01 Silver (60%) + LIN03 GREY (30%) + LIN05 Carbon (10%)| Monolithic Installation
* Images and renderings in this sample book are for illustration purpose and may not represent the real colour.

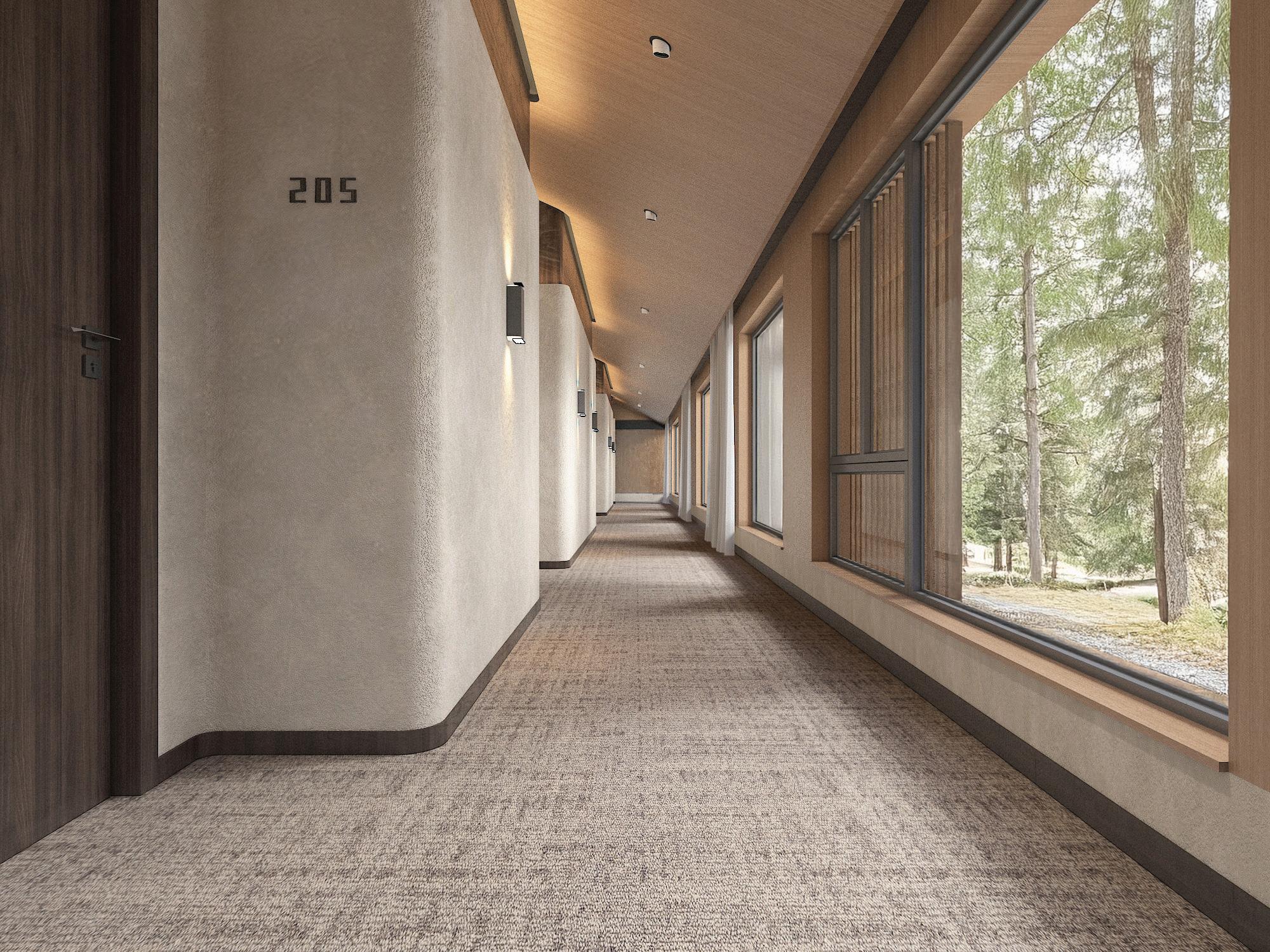

LIN06 Beige (100%) | Random Brick Installation
* Images and renderings in this sample book are for illustration purpose and may not represent the real colour.
LIN01 Silver (100%) | Ashlar Installation
* Images and renderings in this sample book are for illustration purpose and may not represent the real colour.
LIN03 Grey | Herringbone Installation
* Images and renderings in this sample book are for illustration purpose and may not represent the real colour.
* Images and renderings in this sample book are for illustration purpose and may not represent the real colour.

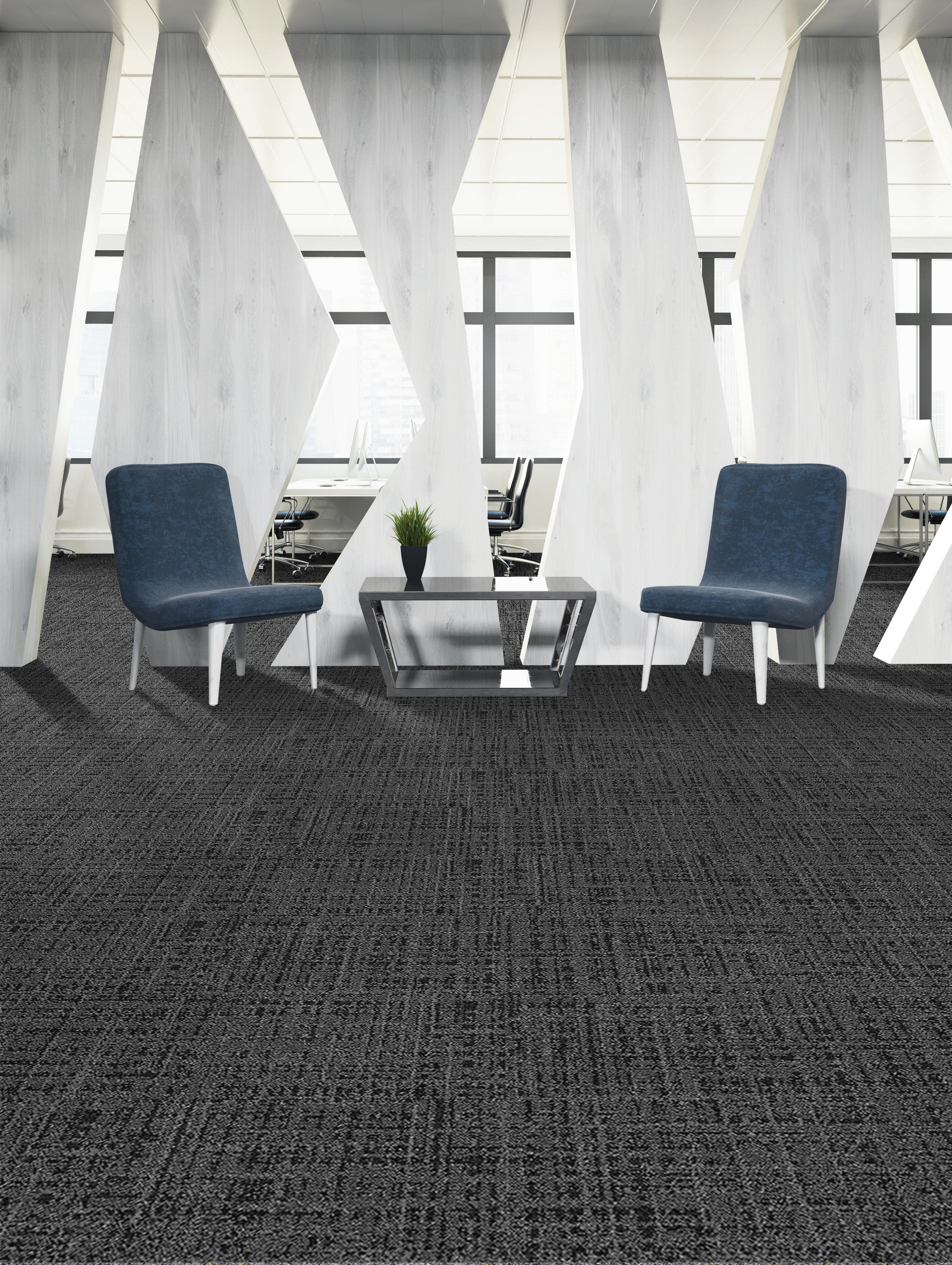

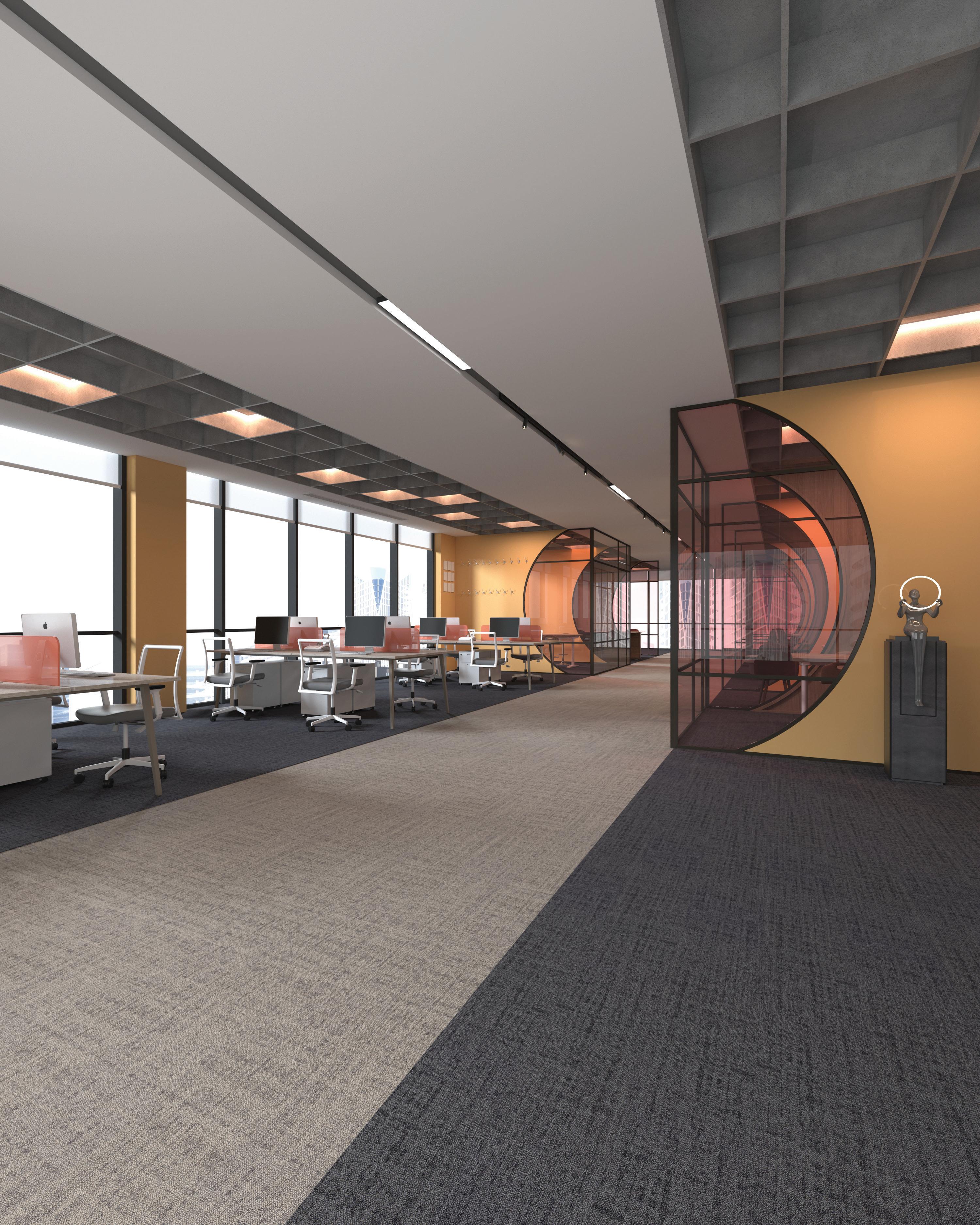

LIN05 Carbon (60%) + LIN06 Beige (40%) | Ashlar Installation
* Images and renderings in this sample book are for illustration purpose and may not represent the real colour.

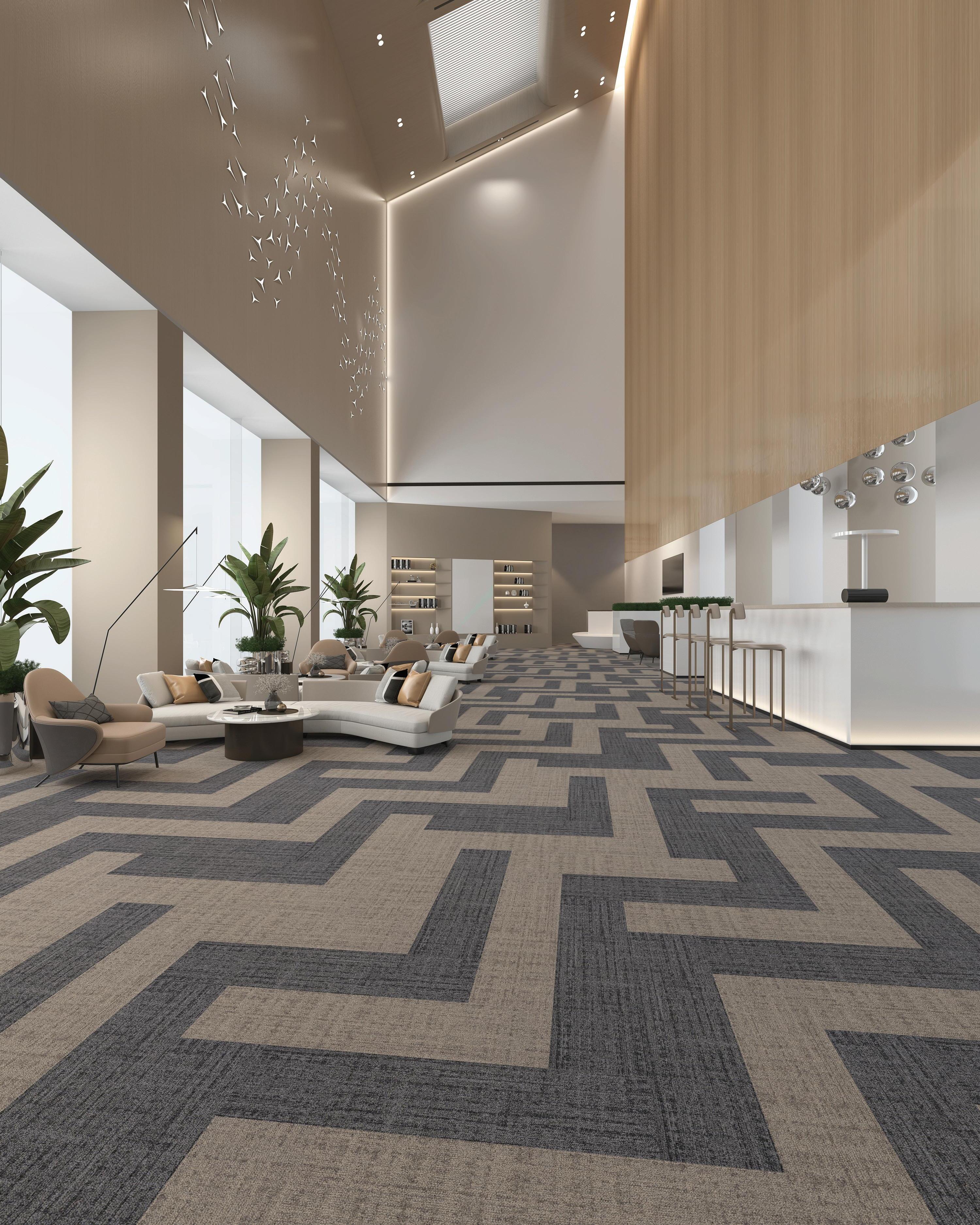

LIN04 Dark Grey (50%) + LIN06 Beige (50%) | Herringbone Installation
