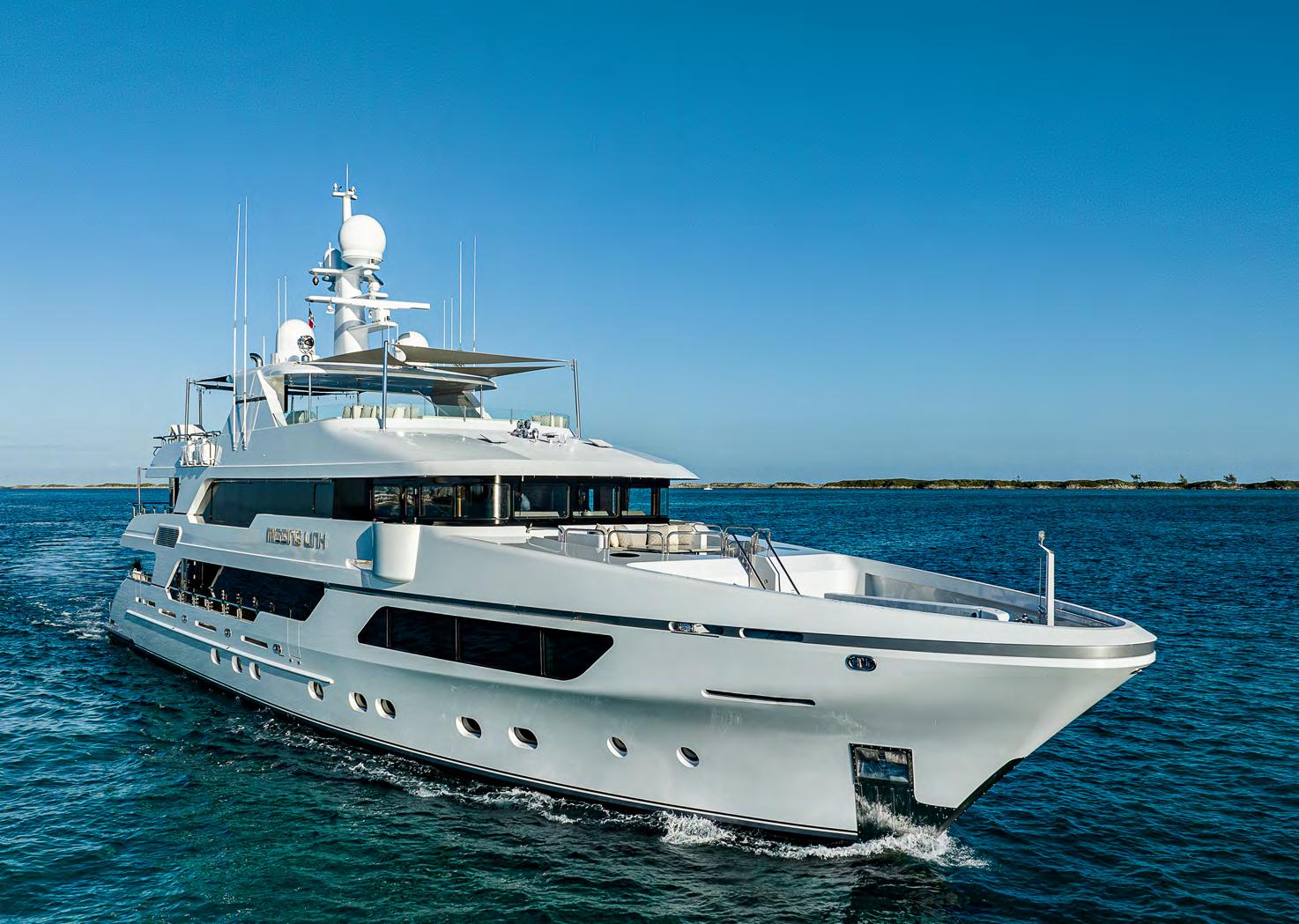

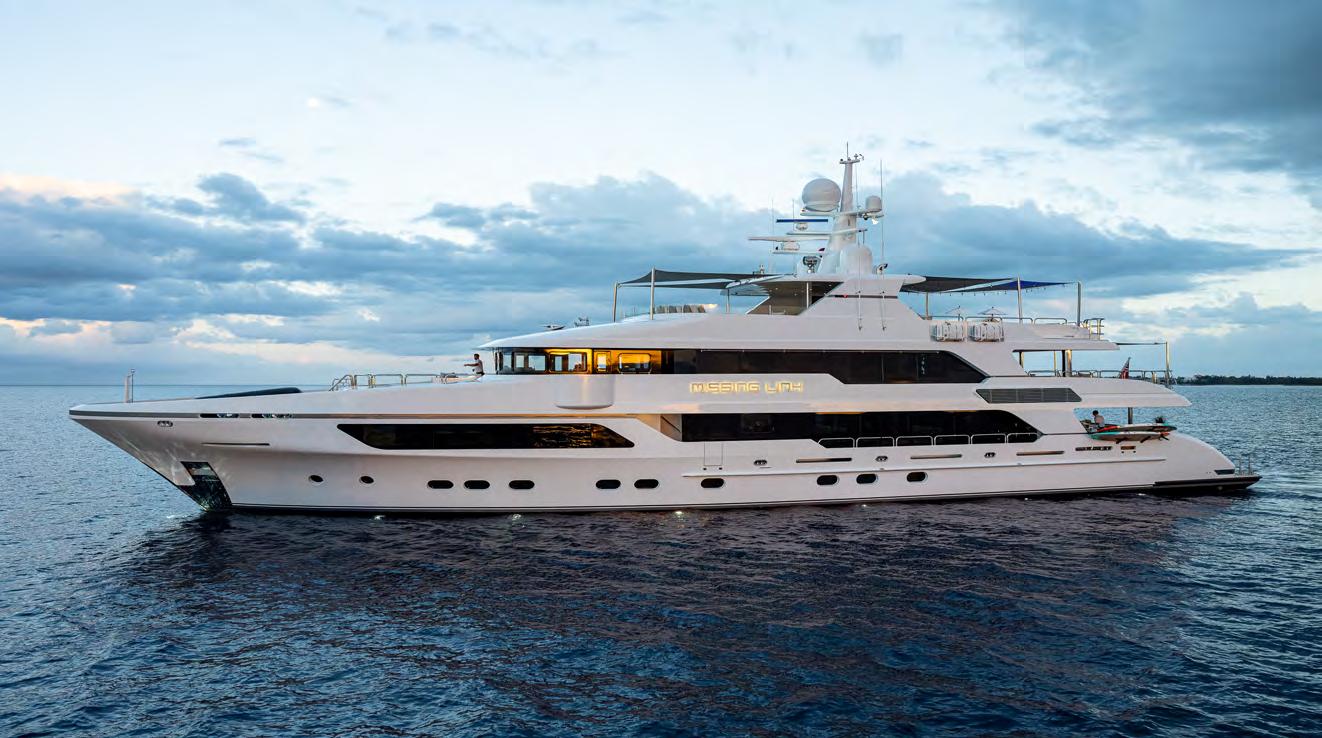

Hull and Superstructure: Fiberglass Composite ABS, A1
Commercial Yacht Service LY2 under 500gt (build to)
Twin MTU 12V 4000 (4 cycle), M53 IMO II Emission
compliant Continuous Duty Rated
1851 BHP @ 1800RPM Per Engine, 1,380kw each, 2,760kw
total propulsion power
Reduction Gearboxes:
Stabilizers:
Electrical:
Speed:
Cruising:
Tankage:
Water:
Range:
Accommodations:
Elevator:
Flag:
Location:
Price:
(2) ZF Model 4650-A, Remote – Mounted
Quantum “Zero Speed” Model QC-1500 (2x) 2.7m fins
(3) 99kw CAT C4.4 generators (new in 2021)
Maximum: 16 knots
12-14 knots
Fuel: 12,400 US Gallons (46.934 liters)
2,200 US Gallons (8,327 liters)
2,500 nautical miles @ 10 knots (estimated)
Sleeps up to 12 in the owner’s party in 5 staterooms, plus crew accommodations for up to 8 in 4 cabins
Services all 4 Decks
Cayman Islands pleasure yacht
Fort Lauderdale, FL
$23,950,000
MAIN SALON
FORMAL DINING
OWNER STATEROOM
ACCOMMODATIONS
The vessel has accommodations for Twelve Guests in (5) staterooms, one "Owner's suite", two VIP king bed staterooms, one guest double plus single bed, and one guest twin room with option to join for Queen bed, and Pullman berth in both guest rooms. There are Eight Crew in (4) cabins, including captain's double cabin.
Owner
The Owner’s full width suite is located on the main deck. Owner’s office/sitting area is to starboard upon entering the owner suite hallway, which then leads forward into the owner suite. This is a huge suite comprising two large walk-in closets, vanity and his/her en suite bathrooms. There is a large Jacuzzi tub on the port side. The room is an elegant mix of fabric panels and high gloss finished wainscot.
Guests
There are (4) Large Guest Cabins located on the lower deck, two VIP king bed staterooms, guest starboard forward with one double bed, one single bed, and optional Pullman berth, guest port forward with twin beds and option to join for Queen bed, and optional Pullman berth. All (4) Cabins have en suite bathrooms with spacious marble showers.
Crew
There are (3) upper/lower crew cabins forward of the spacious crew’s quarters on the lower deck, plus a large captain’s double cabin aft of the wheelhouse, all with en suite bathrooms. 8
Owner His/Her Head
Owner Stateroom Sitting Area
VIP GUESTROOM
SKYLOUNGE
SKYLOUNGE AFT DECK
AL FRESCO DINING

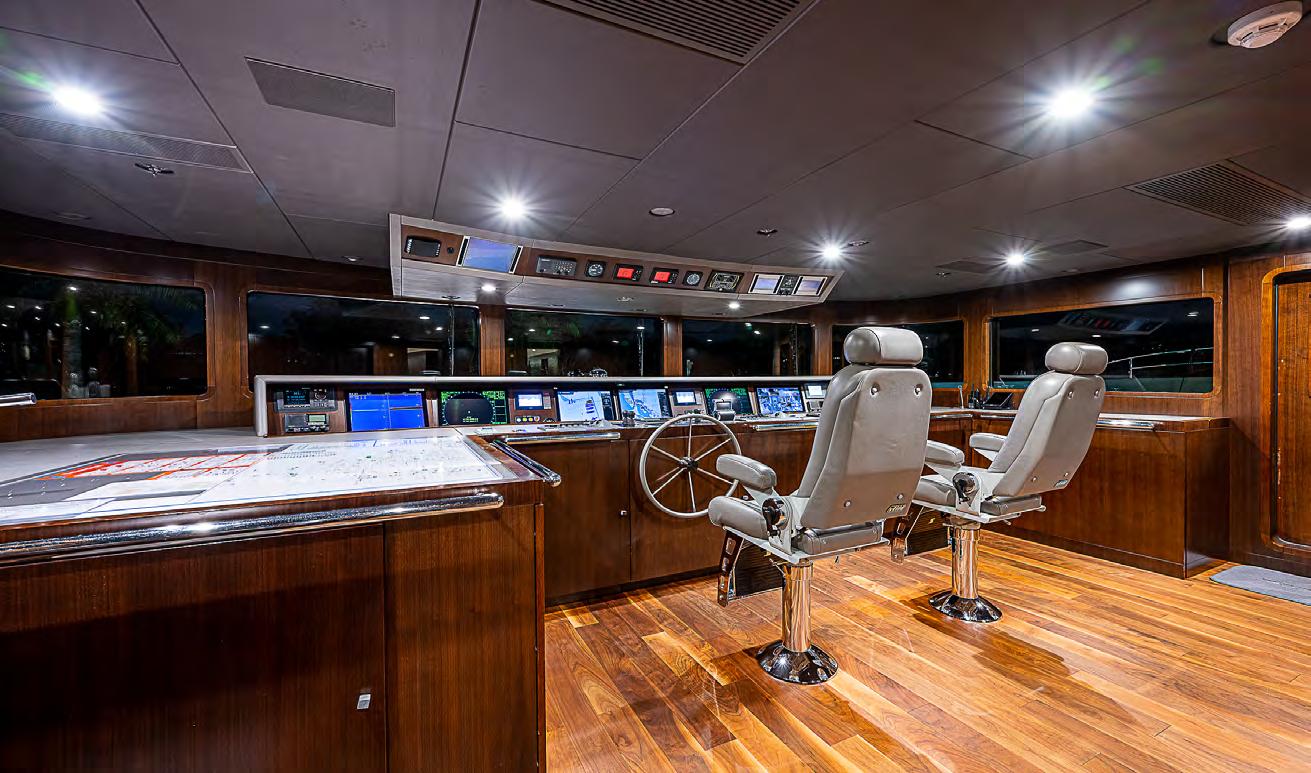

PILOTHOUSE
SUN DECK
GALLEY & LAUNDRY
Main Galley Equipment
Cooking Equipment:
(1)6-burner Professional Cooktop
(1)Extraction Hood with fire suppression system
(1)WOLF E-Series Oven (updated in 2021)(1) Microwave Oven
(1) Glo-Ray infrared food warmer
(1)Microwave Oven
Refrigeration/Freezer:
(1) Glaciercorp walk-in regrigerator
4x Sub Zero freezer drawers
2x Sub Zero standup freezers
2x Sub Zero standup regrigerators
Dishwasher: (1) Full Size Miele Dishwasher
Crew Galley Equipment
Laundry Equipment
(1) Microwave
(2) Washers and (2) Dryers (Speed Queen – updated in 2023)
Room

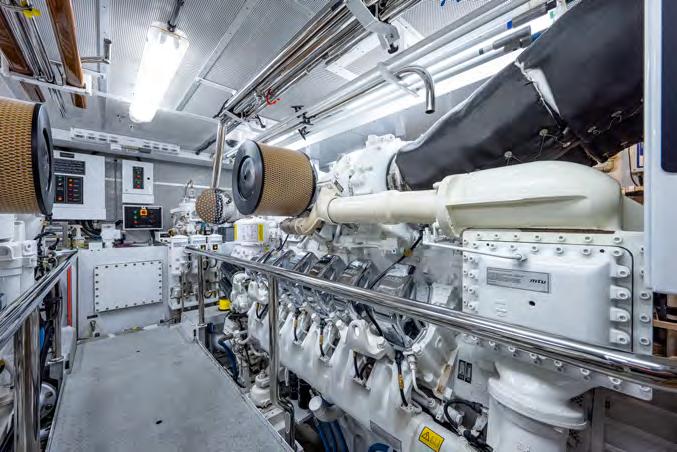

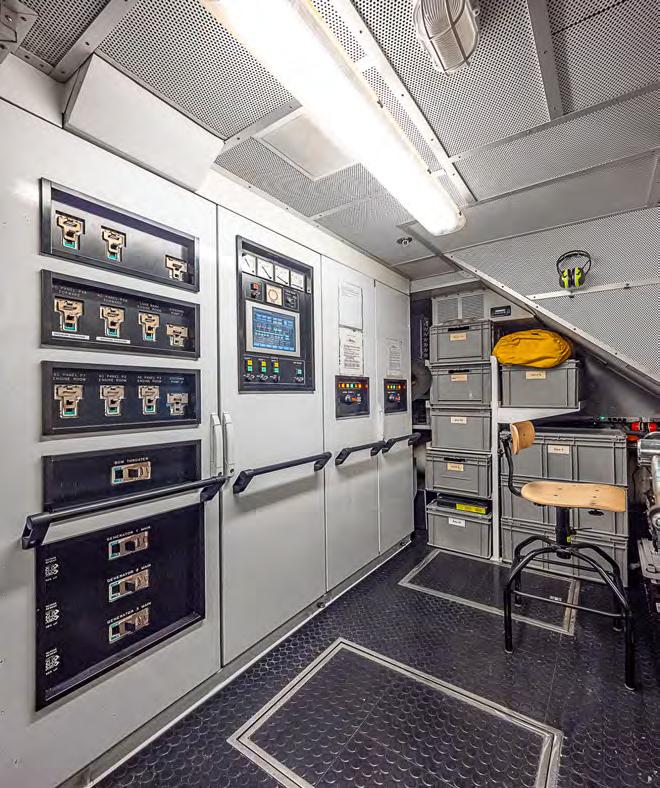

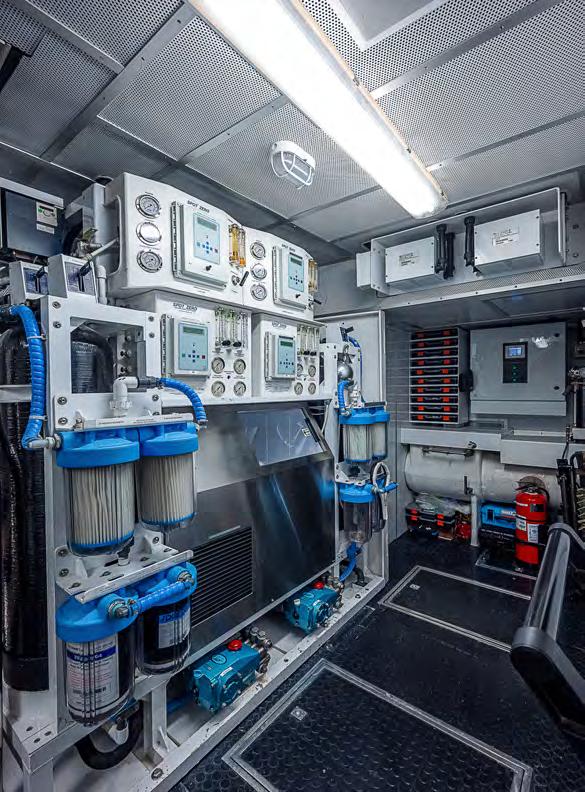

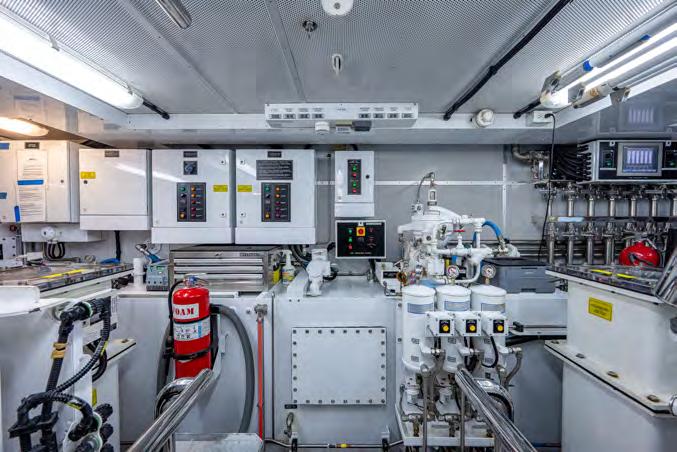

Engines, Generators, Other Machinery Engine Room
Machinery
Main Engines
Engine Type: (2) MTU 12V 4000 Series, (4 cycle) M53 IMO II emission compliant
Continuous Duty Rated with pre-lube & coolant pre-heat systems 1851 BHP @ 1800RPM per engine, 1,380kw each, 2,760kw total propulsion power
Gearboxes for Main Engines: (2) ZF Model 4650-A 3.04:1 ratio 8˚ down angle remote mounted with torsional couplings, trailing pumps & trolling valves
Fresh Water System: (2) Grundfos Pumps, w/ Silver Ion and UV sterilization
Bilge Water Filtration: (1) SkimOil Inc., model “Brute” Heavy Duty, USCG, ABS, & IMO approved
Hydraulic system: Stealhead Power Packs
LAZARETTE

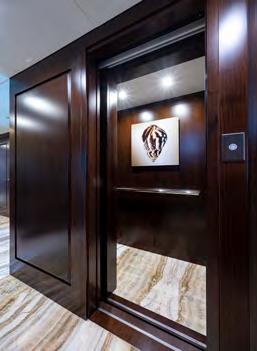

Elevator (Services all 4 Decks)
Electronics
Communication, Navigation, Monitoring & Entertainment
Communication System
SATcom:
VSAT:
Telephone System:
SSB:
Sailor FB500, KVH HD11 x2 satellite
Starlink Maritime (2) Sea Tel 4012
Panasonic with intercom and paging Furuno FS 1570
VHF: (1) Furuno FM8800 VHF; (2) ICOM M604B
Cellular Phone System: Erickson W25 Quad Band
Loud Hailer:
Network Access:
Wireless Network: RayMarine 430
Fully updated Network with VSAT, Starlink, Keiro, Cellular and hard wire options
(8)802.11 a/b/g Wireless Access Points with built in power over Ethernet; System provides Wi-Fi access for the entire yacht
Entertainment System
Audio/Video Equipment Summary: (2) SeaTel 4012Sat TV antennas; Functional control of the entire A/V system is through Crestron touch panels located in every room, as well as U.S.,
Caribbean, All Crestron, and receiver equipment is located in a central A/V room and networked throughout the yacht.
Navigation System
Navigation Electronics: Johnson Electronics & Machinery, Inc.
Radar: (1) Furuno X Band; (1) Furuno S Band (both with ARPA)
Gyrocompass:
Autopilot:
Depth Sounder:
Simrad CG85
Simrad AP80
GPS: Weather Fax: Chart Plotter: (1)B&G; (1) Furuno FCV1200BB Color Video Sounder
Wind/Speed Log: Navtex:
Furuno GPT50D GPS Navigation System
Furuno Felcom 15 Standard-C
TimeZero Shuttle Pcs (2) replaced in 2024
B&G HY3-SYST-I H3000 Cruiser, with (7) additional FFD’s
Furuno NX700A with printer
Night Vision Camera: NVT model 5100 Thermal Imaging Camera with stabilizer
Bridge Watch System: Furuno BR-500 - New Requirement
Monitoring System
System by: Hyak Electroworks
Systems Integration Network: Hyak Electroworks - SIMnet, Integration and Monitoring Network connects the vessels programmable systems to allow remote monitoring, data logging, power management, and diagnostic.

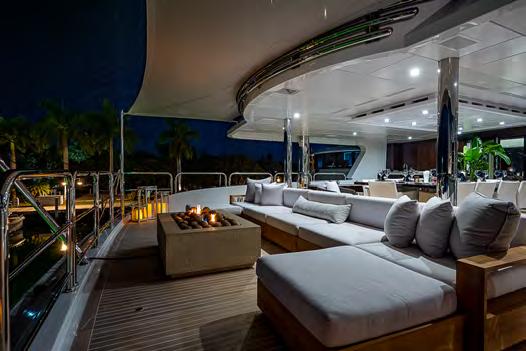

Skylounge Aft Deck
Skylounge Bar
Tenders & Deck Equipment
Tenders & Toys, Deck Equipment, Security, Safety
Tenders & Toys
Tenders:
Dive Gear:
Deck Equipment
Anchor Windlass
Aft Warping Capstans:
Anchors:
Anchor Chain:
Boat Crane and Davits:
21ft GradyWhiteFisherman216
(1) Servitec420IRBRescueBoatperCISRrequirements
(2) Wave Runners
(2) SeabobsF5SIxonRed
(1)AwakeRavicSSurfboard
(1)Browniesdivecompressor
(2)Maxwell SY-22 Electric
(4)Maxwell VC 4000
(2 300KG “Pool N” Type, balanced Anchors
(2)500 feet of 20.5mm chain
(1)CT5000 Steelhead (2,270 kg) capacity
(1)CT3500 Steelhead (1,587 kg) capacity
(1) Hydraulic Telescoping with 20’ (6 meter) extension
Security, Fire Fighting & Safety Equipment
Security Equipment
CCTV System:
Cameras:
Monitors:
Networked through the Crestron A/V control system (12)CCTVCameras-visibleincrewareasand wheelhouseandCaptain'sCabin
Fire Fighting Equipment
Fire Control System:
Fire Extinguishers:
Alarms:
Optec Medium Pressure Sprinkler System
AsperABSandCaymanIslandrequirements
Christensen Integrated Control System, with detectors located in every room
Passerelle:
Swimming Platform:
Integral to the Transom
Safety Equipment
Life Rafts:
Life Rings:
EPIRBS:
Flares:
(4)16 person Revere SOLAS
PerCISRrequirements
(1)ACRGlobalFix
SART2xACTPathfinder
PerCISRrequirements
Sun Deck
Owner's Tender
Tender & Toys
Construction
Hull:
Superstructure: Dimensions
Length Overall (L.O.A.):
Length at Waterline (L.W.L):
Beam :
Draft (Full Load):
Tonnage:
Displacement(Full Load):
Construction
Construction, Dimensions, Capacities, Speed
Vacuum Infused Composite
Vacuum Infused Composite
142’ (43.3 meters)
121'2" (36.95 meters)
29’ 0" (8.84 meters)
8’ 2” (2.51 meters)
480 Gross Tons
800,000 lbs. (362,874 kg)
Capacities
Fuel capacity:
Fresh water capacity:
Watermakers:
Lube Oil:
Waste Oil: Speed
Maximum:
Cruising:
Range:
12,400 US Gallon (46,934 liters)
2,200 Gallons (8,327 liters)+1,400 Gallons (5,299 liters) forward from tank (15,142 liters)
4000 US Gallon Per Day
300 US Gallon
360 US Gallon
16 knots
12-14 knots
2,500 Nautical Miles @ 10 knots
(1,136 liters) (1,362 liters)
Preliminary Listing - not all capacities, ranges, specifications, details and drawings are guaranteed and are subject to change. Contact Broker for more information.
